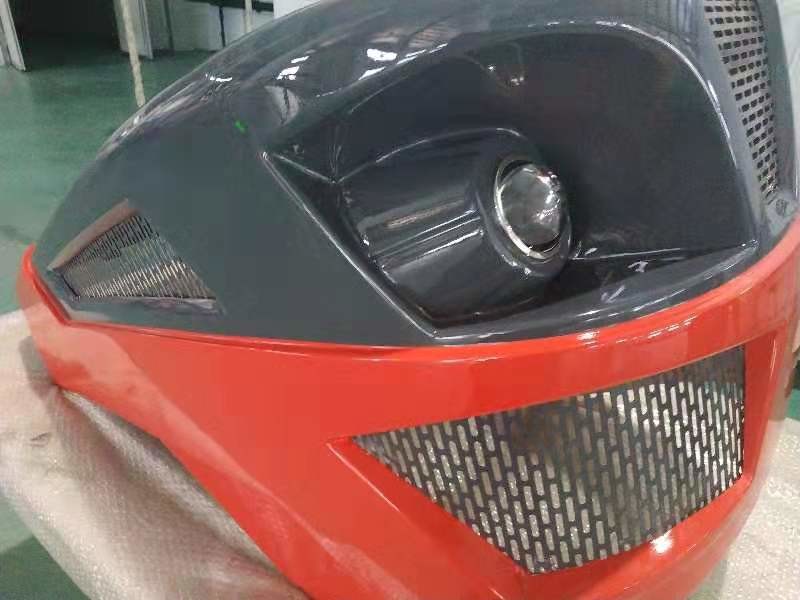

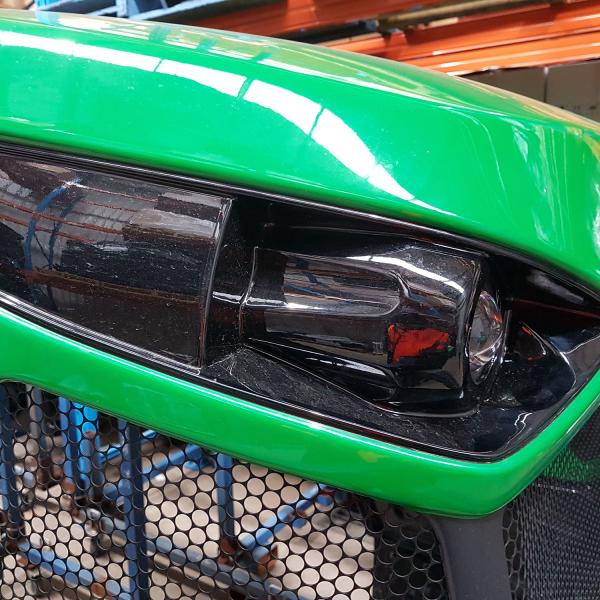

fiberglass tractor engine cover/FRP tractor bonnet/FRP engine shell/Fiberglass tractor parts

Molded FRP parts for an assortment of industrial/environmental needs, such as: equipment housings, tractor parts, exterior covers, tanks, totes, and more.

Manufacturing Process of fiberglass tractor engine cover/FRP tractor bonnet/FRP engine shell/Fiberglass tractor parts​​:

1st: Mould treatment:
Polish: Mould must be polished before production which will guarantee the good and solidified surface
Clean: Special detergent are used to get the dust away from the mould which will make no dark markings in the
gel coat surface.
Release agent: This will be brushed on the mould to make ejection easily.

2nd Fiberglass and resin:
Gel coat: The color of products is decided by the gel coat,with thickness of about 0.3-0.5mm. UV resistant can
be added.
Surface mat: This is to avoid the air bubble on the surface, and also make fiberglass mat invisible from the finished
surface.
Fiberglass mat: Normally we use 300g/m2 (0.6mm thickness) and 450g/m2 (0.9mm thickness). According to your
requests on the thickness and strength, we will calculate how many layers of fiberglass mat should be used.


3rd
Solidify: The time required for solidifying depends on thickness and weather condition.Normally 24 hours for one
piece to solidify to avoid any deformation after demoulding.
Demould: After solidified, the product will be demoulded
Cut and trim: We will mark the trim line and hole positions on the mould,then trim according to the marks to
gaurantee the mounting dimensions



4th Adhesion: Professional mould and Temperature and worker

5th Surface treatment :

6th Painting

7th Package Solution:
Our principle: Safe and economical
We choose economical packaging on condition that there will be no damage during transportation.Shipping: We are very glad to get the freight cost information for you
as we have long term cooperated forwarder company.

Process: RTM PROCESS

CLOSED MOLD LAMINATING PROCESS

UTILIZING COORDINATED “A-SIDE” AND “B-SIDE” MOLDS TO CREATE PARTS WITH LESS WASTE AND BETTER “B-SIDE” COSMETICS

Light RTM, a closed mold process, utilizes coordinating molds comprised of a rigid “A-side” mold, the base, and a lightweight rigid “B-side” mold that fits inside or on top of the A-side mold. Prior to affixing the two molds together, a pre-sized, cut and formed continuous strand glass mat, woven glass mat or Carbon fiber reinforcement is dry-loaded into the base mold. Rather than use pressure, RTM Light uses a vacuum, which pulls the catalyzed resin through the mold cavity, saturating the fiberglass reinforcement to create a part with consistent thickness, a smooth B-side surface, and controlled fiber/resin ratios. Relative to other Closed Mold Processes, Light RTM offers lower tooling costs.

Utilize Light RTM when your Fiberglass Reinforced Part requires:

A strong, yet lightweight structure

Durability and weight resistance

Smooth "B-side" appearance

Benefits of LRTM vs. Open Mold laminating, include: less waste/scrap and cosmetic “B-side” surfaces. The LRTM laminating process is commonly used in the transportation, recreation, and agricultural markets.

Competitive Advantages of fiberglass tractor engine cover/FRP tractor bonnet/FRP engine shell/Fiberglass tractor parts

• Strong, durable – long life under even extreme weather exposure
• Lightweight – easy to transport and install
• Reinforcement offer superior sidewall strength
• UV protection
• Fire retardant
• Fast turn-up on production

Value Added Services
• Materials formulated for UV-stability, stain-resistance
• Engineering and design support
Quality and Other Certifications
• ISO-9001

Fiberglass is a widely used material that became popular in the past few years. One of the reasons of its relatively recent success is that it has several advantages compared to the steel: it is corrosion-free; it has significant chemical resistance and it is a lightweight material (three times less dense than steel, on average). These benefits make fiberglass suitable for automotive production, where all these advantages are very important.

Qingdao Lanmon Industrial Co., Ltd., production and export of glass fiber reinforced plastic products more than 10 years of experience, mature hand-paste molding process, the quality of our products have been well controlled, has won the trust of customers at home and abroad and favor. Products are high-speed rail car interior; automotive shell; construction machinery and medical machinery shell; FRP crafts molds; FRP furniture.

Company's existing staff of 60, of whom five were senior technicians, process technicians and 10. Strict control of the quality of the products, passed the strict ISO9001 quality system certification.

·

Mission: Extensive use of composite materials technology to open up a new area on the material applications
